THE ELBOW AND FOREARM

(See also pp. 77, 81, and 86-88.)

Both medial and lateral aspects of the elbow joint are conveniently accessible because the arm is relatively free and the axillary fossa deep.

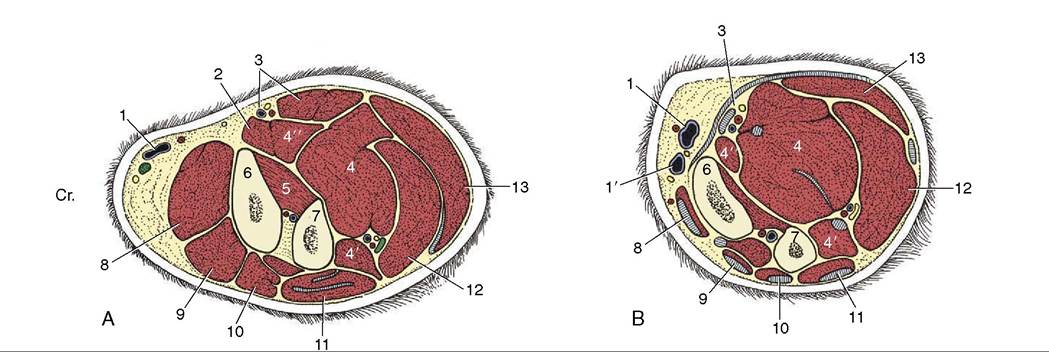

Figure 16-4 Transverse sections of the left canine forelimb just distal to the elbow joint (A) and just proximal to the carpus (B). 1, Cephalic vein and branches of superficial radial nerve; 1', accessory cephalic vein; 2, pronator teres; 3, median vessels and nerve and flexor carpi radialis; 4, 4’, 4", humeral, ulnar, and radial heads of deep digital flexor; 5, pronator quadratus; 6, radius; 7, ulna; 8, extensor carpi radialis; 9, common digital extensor; 10, lateral digital extensor; 11, ulnaris lateralis; 12, flexor carpi ulnaris; its small ulnar head lies on its caudal aspect, and the ulnar vessels and nerve lie on its cranial aspect; 13, superficial digital flexor.

triceps tendon and olecranon (see Figure 16—13/5,6). The collateral ligaments arising from the epicondyles are also easily palpated. Although the condyle of the humerus projects forward and is offset from the long axis of the bone, a considerable covering of muscle makes it less accessible.

The entire medial border of the radius is subcutane­ous; the cranial surface is palpable distally, where it is only thinly covered by the extensor carpi obliquus and the tendons of the other extensors (Figure 16-4/6).

The median vessels (Figure 16-4/5) (continuations of the brachial) and nerve are embedded among the carpal and digital flexor muscles, close to the medial border of the radius (Figure 16-5).

The cephalic vein (Figure 16-4/7), the most popular choice for intravenous injections, follows the cranial border of the forearm, where it can be palpated when raised by pressure over the elbow; it often produces a visible ridge even when not occluded in this way. Because it is connected (by the median cubital vein) to the deep system of veins at the elbow before it continues over the lateral surface of the arm, it is best compressed distal to this anastomosis (Figure 16-6/2). The vein lies on the extensor carpi radialis in the forearm, accompanied by sensory branches of the radial nerve.

In cats, the distal end of the humerus is distinguished by a prominent medial (supracondylar) foramen (Figure 2-46, C/14 and Figure 16-7), which transmits the brachial artery and median nerve in the caudocranial direction. These structures are therefore vulnerable in fractures and surgery of this part.

Lateral radiographs show the humeral condyle deeply seated in the trochlear notch of the ulna (Figure 16-8, A). The prominent medial epicondyle (Figure 16-8/1') is superimposed on the olecranon, while the anconeal process, at the proximal end of the notch (Figure 16-8/4), is superimposed in turn on the medial epicondyle. In some breeds the anconeal process may have its own ossification center that fuses with the rest of the bone at 3 to 5 months of age. If it fails to do so or if, having fused, it later becomes detached, the loose piece causes severe lameness; the condition (“un-united anconeal process”) is mainly encountered in the larger breeds.

The distal epiphysis of the humerus fuses with the shaft at 5 to 8 months, which is considerably earlier than closure at the proximal end. The proximal epiphysial cartilage of the radius and that of the tuber olecrani generally disappear about the same time; the larger distal cartilages of the forearm bones disappear a little later, usually at about 6 to 9 months. Fully two thirds of the lengthening of the radius is due to growth at its

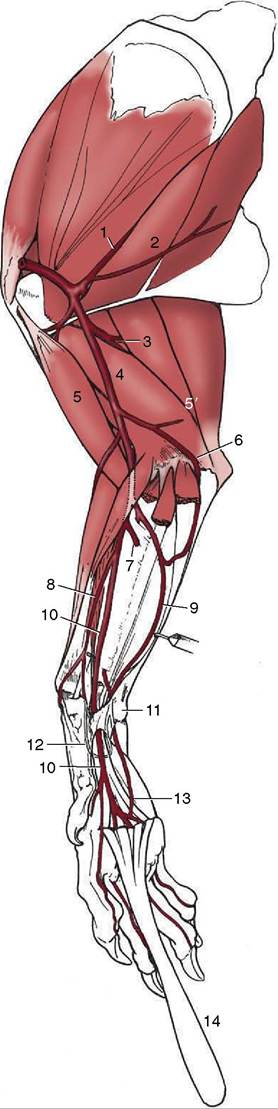

Figure 16-5 The topography of the major arteries of the right canine forelimb, medial view. The caudomedial muscles of the forearm have been removed. 1, Subscapular artery; 2, teres major; 3, deep brachial artery; 4, brachial artery; 5, biceps; 5', triceps; 6, collateral ulnar artery; 7, deep ante­brachial artery; 8, radial artery; 9, ulnar artery; 10, median artery; 11, accessory carpal bone; 12, deep palmar arch; 13, superficial palmar arch; 14, superficial digital flexor, reflected.

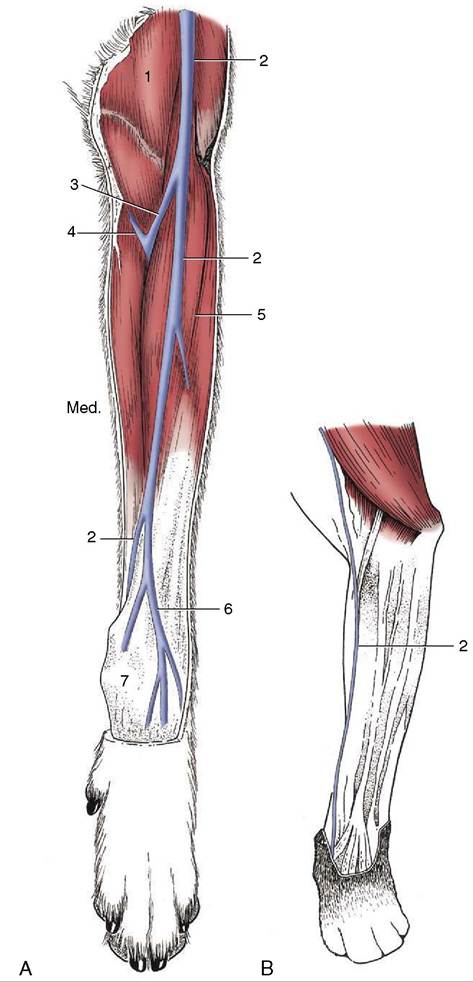

Figure 16-6 A, Superficial veins on the left canine forearm. B, The course of the cephalic vein on the left feline forearm. 1, Brachiocephalicus; 2, cephalic vein; 3, median cubital vein; 4, brachial vein; 5, extensor carpi radialis; 6, accessory cephalic vein; 7, carpus.

Figure 16-7 Feline humerus exhibiting the supracondylar foramen. 1, Supracondylar foramen.

distal cartilage; lengthening of the ulna (distal to the elbow joint) is almost equally dependent on growth of its V-shaped distal cartilage. The deformation that follows unequal elongation of these bones results from “premature fusion” of one of the distal growth carti­lages; the most prominent effect is deviation of the paw, which tenses several interosseous connective tissue structures, most notably the distal part of the radioul­nar ligament. Differences in growth velocity between the radius and ulna may also be responsible for incon­gruity at the elbow joint, which causes a step to develop between the normally level articular surfaces of the radius and ulna.

In the dog the distal part of the humerus presents three ossification centers: that for the capitulum, the trochlea, and the medial epicondyle. The latter is reported to be liable to separate in young dogs of the larger breeds, which causes relocation of the origin of the flexor carpi radialis muscle. In the cat an additional ossification center is found in the lateral epicondyle.

Forearm fractures are relatively common. They occur most often in the distal half of the forearm and, as would be anticipated, generally involve both bones. Fracture of the olecranon is also fairly common.

Flexion of the elbow is accomplished by the brachia­lis and biceps brachii. The brachial muscle originates from the caudal part of the proximal humerus and winds over the lateral surface to gain the medial aspect of the elbow before inserting on the radial and ulnar tuberosities. The biarticular biceps arises from the supraglenoid tubercle and in the dog divides its inser­tion between the medial coronoid process and the radial tuberosity. A tendon strap passing between the biceps and the extensor carpi radialis muscle is sometimes present; of no obvious functional significance, it recalls the lacertus fibrosus of the larger animals. The biceps of the cat inserts only on the radial tuberosity. This muscle has some supinator capacity.

The movements of supination, in which the dorsal surface of the paw is turned outward, and pronation, in which it is turned inward, are primarily the task of a small group of dedicated muscles: two supinator and two pronator. The essential movement is of course rota­tion of the radius within the embrace of the ulna. The supinator is a small, flat, fusiform muscle that lies deep to the extensor muscles in the forearm. It originates from the lateral epicondyle of the humerus and adjacent structures and inserts on the dorsal surface of the proxi­mal quarter of the shaft of the radius reaching close to the medial border of this bone. The second supinator, the brachioradialis, is very weak or even absent in the dog and constant but hardly important in the cat, in which it forms a thin ribbon running close to the cephalic vein. The pronator teres comes from the medial epicondyle of the humerus and converges on the supina­tor; the two muscles insert close together. The pronator teres is stronger in the cat than in the dog. The pronator quadratus lies medial to the interosseous membrane that joins the radius and ulna along the length of their shafts, and like this, it runs between the two bones.

The elbow joint capsule, common to the joint between the humerus and the radius and ulna and to the proxi­mal joint between the forearm bones, extends three pouches: craniolaterally beneath the common digital extensor, craniomedially beneath the biceps, and cau- dally between the lateral epicondyle and the olecranon. The last is used for injections in cats, whereas the first site is more often preferred in dogs. The caudal part of the capsule is closely related to the small, flat anconeus muscle, usually assigned to the extensors of the elbow but probably more important as a tensor of the capsule, preventing redundant folds of synovial membrane from being nipped between the bones.

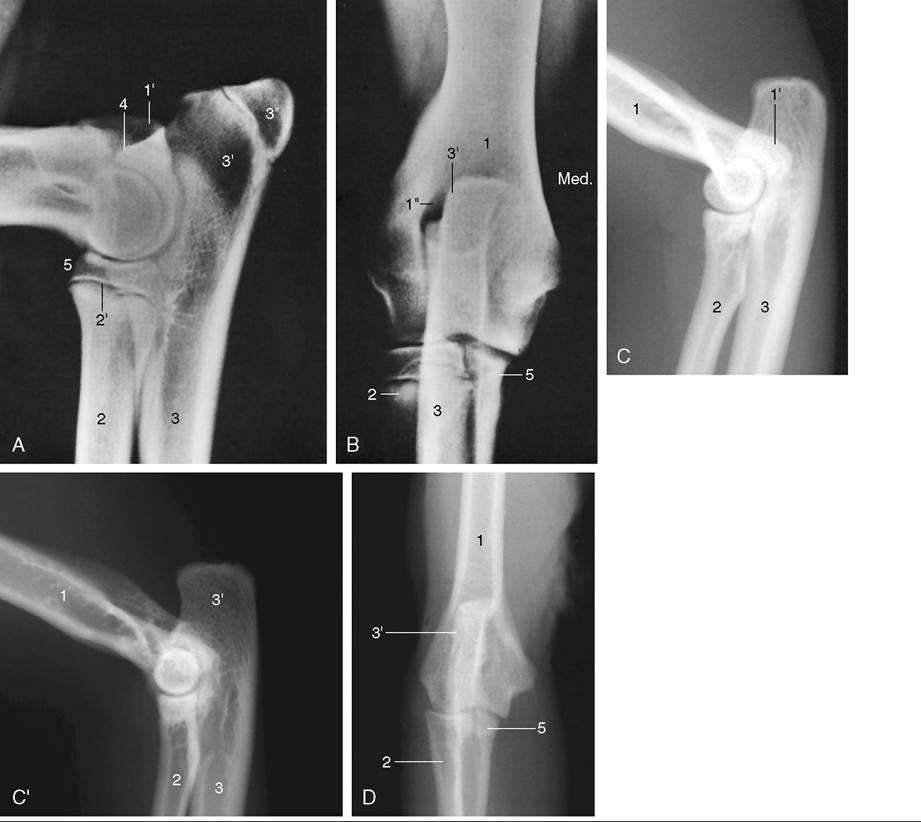

Figure 16-8 Lateral (A) and craniocaudal (B) radiographic views of the elbow joint of a young dog (A and B) and of a cat (C, C', and D).

Luxation of the elbow joint is relatively common, and an understanding of how it occurs may be assisted by fitting the three loose bones together. It will be found that the joint is most easily luxated (by lateral displace­ment of the radius and ulna) when it is flexed; this movement withdraws the anconeal process from the olecranon fossa of the humerus. Medial luxation is less frequent, probably because it is more difficult for the anconeal process to snap over the larger medial epicon­dyle. It follows that dislocations will be most easily reduced if the joint is first strongly flexed to disengage the anconeal process.

In both dogs and cats the collateral ligaments of the elbow present both radial and ulnar divisions, although there are differences in the relative strength of the parts in the two species. The differences are relevant to the degrees of pronation and supination that are permitted. The cat actively enjoys 100° or more movement, whereas the passive excursions in the dog are limited to about 50° supination and 20° pronation. The anular ligament that completes the ring within which the head of the radius rotates inserts on the cranial part of the medial coronoid process, which is consequently subjected to considerable tensile stress. A small sesamoid bone is occasionally associated with the lateral collateral ligament.

The muscles of the forearm conform in broad outline to the common pattern previously described (pp. 86-87); although there are many differences in the details of their attachments, the extent of their division into sepa­rate bellies, and the provision, nature, and extent of protective synovial features, these distinctions lack suf­ficient practical importance to merit mention. The extensors of the carpus and digit, lying cranial to the shaft of the radius, are separated from the flexors caudal to the bone by the palpable border of the radius medi­ally and by the attachment of the most lateral extensor, ulnaris lateralis, to the salient and easily identified accessory carpal bone laterally. The equivocal nature of the ulnaris lateralis is possibly worth stressing; apart from acting as an abductor of the carpus, this muscle appears to support extension of an already extended carpal joint or flexion of one already flexed. The exis­tence of a bridge (interflexorius) crossing from the deep to the superficial digital flexor muscle in the distal forearm may be mentioned as a distinctive feature of carnivores, among the domestic species.
