Study of the Live Animal

Regional anatomy is conveniently studied by means of dissection, but this approach has obvious limitations if the goal is knowledge of the anatomy of the living. The embalmed organs are inert and greatly changed in color and consistency from their living state.

The simplest method is observation of the contours, the proportions, and the posture of the body. Bony projections provide the clearest landmarks, but superficial muscles and blood vessels are also useful, if less striking; reference to these landmarks allows the positions of other structures to be deduced from their known relationships. Little experience is required to reveal the importance of breed, age, sex, and individual variation or to show that although some landmarks are fixed and reliable, others are prone to move. Some (e.g., the costal arch) move with each respiration, whereas other features change more gradually, for example, becoming more or less prominent or shifting in position with the deposition or depletion of fat or with the advance of pregnancy.

Structures that are not directly visible may be identified by palpation—that is, by gentle or firmer touch as circumstances require. Bones may be identified by their rigidity, muscles by their contraction, arteries by pulsation, veins by swelling when the blood flow is interrupted by pressure, and lymph nodes and internal organs by their size, configuration, and consistency. Nonetheless, variation is great and is affected by many factors.

Certain organs may be identified by percussion to elicit resonance when the overlying skin is struck a sharp blow (in a prescribed clinical fashion). Different materials produce different notes; a gas-filled organ is more resonant whereas a solid or fluid-filled emits duller notes. The normal activities of certain organs produce sounds continuously or intermittently. Although the lungs and heart (not forgetting the fetal heart) are the prime examples of organs whose positions can be determined by auscultation, the movement of blood within vessels or of gas or of ingesta within the stomach or intestines can also be a useful source of anatomic information. While applying these techniques one must remember that the vagaries of sound conduction through materials of different densities may provide a distorted indication of the position and dimensions of the source.

The study of the anatomy of the live animal can be enlarged by other methods whose exercise requires considerable training and more elaborate apparatus than the simple stethoscope. These additional procedures have provided a variety of new illustrations scattered through later chapters; some elementary knowledge of how these illustrations were obtained may assist their appreciation, but detailed consideration of the various technologies involved is clearly beyond the scope of this book.

Many parts and cavities that are normally out of sight can be brought into view with the use of various instruments. Perhaps the most familiar of these are the ophthalmoscope, used to study the fundus of the eye, and the otoscope, used to explore the external ear canal. Other instruments for which the generic title "endoscope" is available may be introduced into natural orifices and advanced to allow inspection of deeper parts, such as the nasal cavity, bronchial tree, or gastric lumen. These examples of endoscopy are noninvasive, but other examinations require preparatory surgery.

The rigidity of the early endoscopes limited their utility. The modern endoscopes use flexible fiberoptic systems and are remotely controlled. The essential components of the fiberoptic instrument are two bundles of glass fibers. One bundle is used to convey light distally, from an external source to the region to be viewed; the component fibers can be relatively coarse and randomly arranged. The second bundle conveys the image and is composed of finer fibers that maintain fixed positions in relation to one another. The image is composed of many tiny units, each corresponding to an individual fiber, and is presented to the eye (or to a camera or video system) at the proximal end of the instrument.

Radiographic anatomy has for some time been an indispensable component of every course of anatomy. X rays are produced by bombarding with electrons a tungsten target (focus) housed within a shielded tube. Only a narrow x-ray beam is permitted to escape, and this beam is directed toward the relevant region of the subject. The passage of the rays through the body is affected by the tissues they encounter; tissues substantially composed of elements of high atomic weight tend to scatter or absorb the rays, and tissues substantially composed of elements of low atomic weight have proportionately less effect. Because of its calcium content, bone clearly belongs to the first (radiopaque) category, whereas soft tissues generally belong to the second (radiolucent) category. Those rays that succeed in passing through the subject are allowed to impinge on a sensitive film (or other detector), which responds to the radiation received.

Radiographic views are appropriately identified by reference to the direction taken by the x-ray beam in its passage through the subject. Thus a radiograph of a supine animal, presenting its belly to the x-ray source, is described as a ventrodorsal film; that obtained with the animal turned over, with its belly now facing the film, is described as a dorsoventral film. The convention provides little scope for confusion but occasionally produces an awkward term, such as dorsolateral-plantaromedial, which specifies a particular oblique view of the hock.

Awareness of certain general principles helps one avoid some common misinterpretations: the image of any structure is always magnified to the degree determined by the ratio between the distance from focus to film and distance from focus to object; the divergence of the x rays produces an apparent shift in position of any object not directly below the focus. Two simple diagrams (Fig. 1.2) will make these points clear. A less easily resolved difficulty results from the superimposition of the images of structures that lie over each other. An ingenious, only partly successful, solution to this problem was sought in the coordinated movement—in opposite directions—of tube and film during the period of the exposure (Fig. 1.3A). In this technique, known as tomography, the axis about which tube and film travel coincides with the plane of the horizontal slice of the subject that is of current interest.

In the modern CT scanner, the x-ray source is moved in a circle that is centered on the longitudinal axis of the subject during the procedure, which takes from one to several seconds for its completion (see Fig. 1.3B). During this time the movement of the tube is repeatedly arrested for very short periods; during each of these, a burst of radiation is directed through the subject along a different radius. The beams that penetrate the selected, very narrow slice of the subject impinge on a series of discrete detectors or, in some designs, on portions of a continuous circumferential detector and are photomultiplied. After the procedure is completed, these records are analyzed, compared, and combined according to complex formulae (algorithms); from these computations, a single cross-sectional image is constructed in which the forms, locations, and comparative radiodensities of all the tissues within the selected body slice are represented (Fig. 1.4). In more complex settings, multiple overlapping or adjacent slices can be imaged in an extended, continuous process. With the amount of information the extended process supplies, it is possible by even more elaborate computation to construct images in other than transverse planes. The data may also be manipulated to enhance subtle differences in contrast presented by tissues of very similar radiodensity.

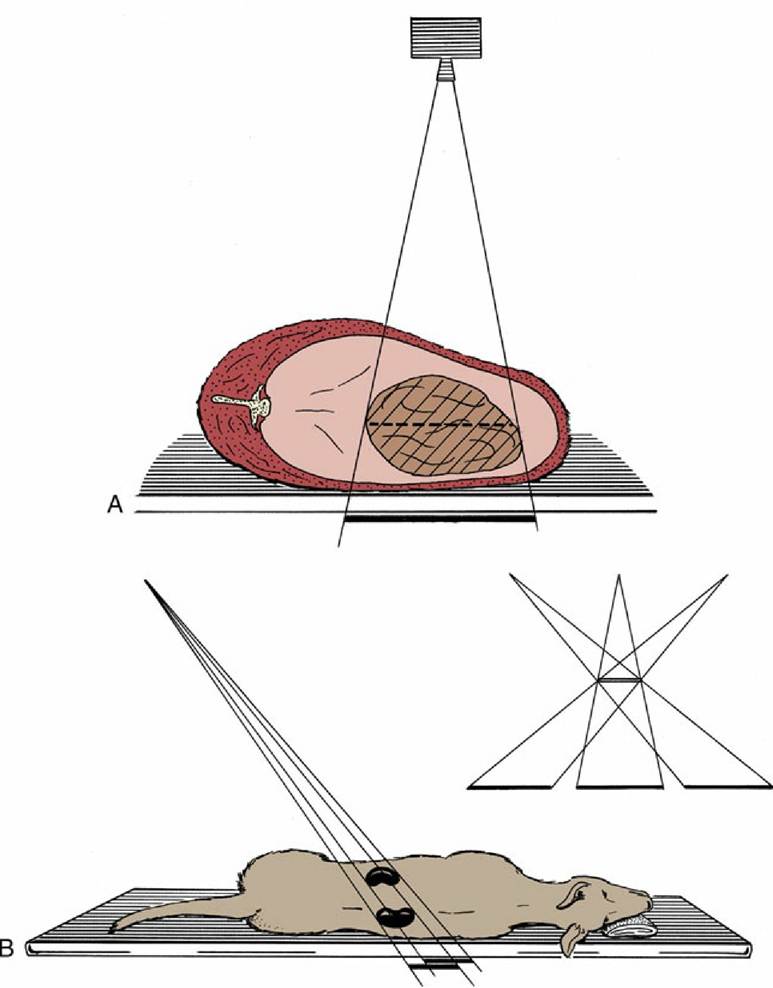

FIG. 1.2 (A) Schematic drawing illustrating the magnifying effect on radiographs caused by the divergence of x rays. (B) Schematic drawing illustrating the apparent shift in position on radiographs of an organ that is not directly below the focus.

CT is, of course, not free of all drawbacks: subjects must be strictly immobilized during the exposure procedure; the total radiation dose may be quite considerable, even though individual exposures are very short, and the resulting images amplified; artifacts may produce deceptive images; and current apparatus designed for medical use is suitable for small animals but must be adapted for application with large animals and is then limited to the investigation of the head and limbs. One by-product of CT is the revival of interest in cross-sectional anatomy, an approach to the discipline that had been regarded as irretrievably passe but is now clearly indispensable to CT interpretation.

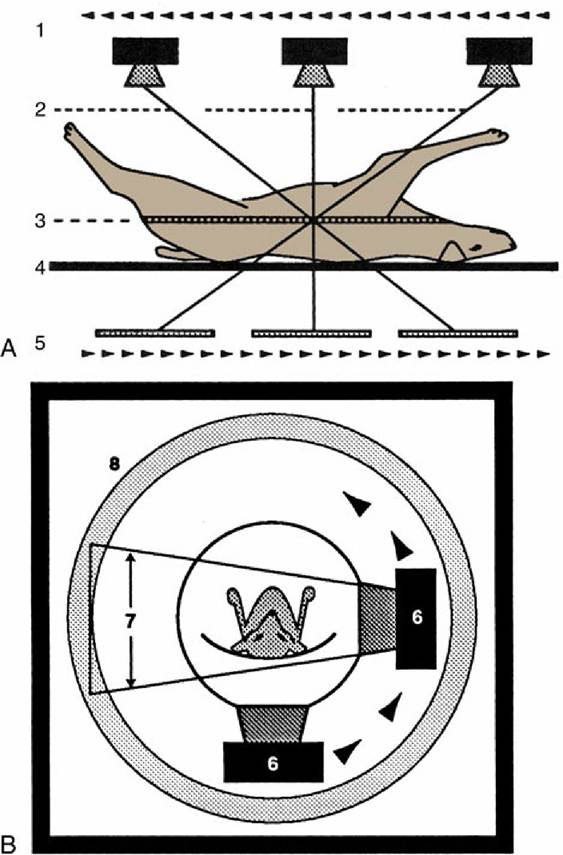

FIG. 1.3 Diagrams of a basic (noncomputed) x-ray tomographic apparatus (A) and of a fourth-generation computed tomography (CT) scanner (B). 1, Movement of x-ray source during exposure; 2, lines indicating mechanical connection between x-ray source and radiation detector (i.e., film); 3, plane of focus; 4, supine patient on stationary table; 5, movement (in the opposite direction) of detector during exposure; 6, movement of x-ray source around stationary patient; 7, x-ray beam during exposure; 8, ring of fixed detectors surrounding the rotating x-ray tube mechanism.

Our knowledge of anatomy, especially the correlates of structure and function, will continue to grow through the implementation of new tools such as positron emission tomography-magnetic resonance imaging (PET-MRI), which exploits the high-resolution capability of MRI with the use of sophisticated imaging tracers in PET.

Familiarity with cross-sectional anatomy is also required for the practice of ultrasonography. This technique depends on the capacity of a piezoelectric crystal to convert electrical energy into sound waves and vice versa. When stimulated, a suitably housed crystal transducer, coupled to the appropriate area of skin, directs a narrow beam of sound waves of uniform frequency into the body. The waves are propagated through the tissues with decaying intensity, and a fraction is directed back toward the source at each encounter, with an interface between tissues offering different resistance (acoustic impedance). Reconverted into electrical energy, the echoes generate a visible image on a screen. This image, which can be "frozen" or recorded in various ways, represents the thin body slice directly below the transducer. The sound wave is produced not continuously but in very short bursts, perhaps lasting for no more than one-millionth part of a second. The longer silences that alternate with these bursts allow the time necessary for the receipt of echoes bounced back from interfaces at different depths.

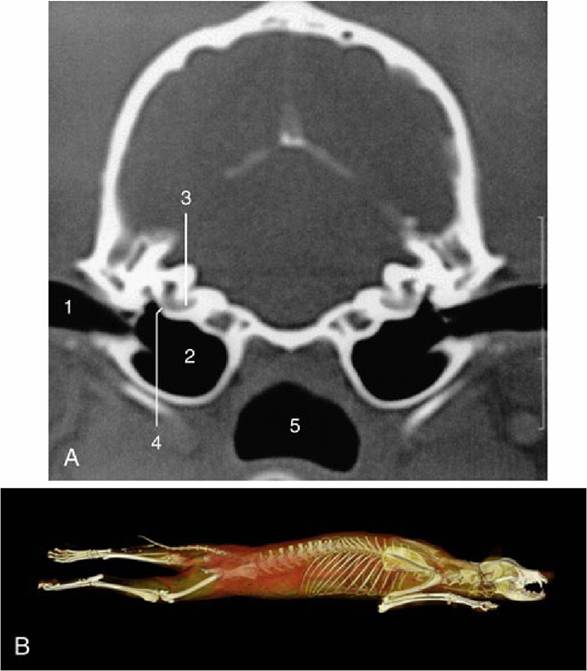

FIG. 1.4 A, Transverse image of a 2-mm-thick computed tomography slice of the canine tympanic bullae and petrous temporal bones. (Bone settings were used.) 1, External acoustic meatus; 2, tympanic bulla; 3, cochlea; 4, round window; 5, nasopharynx. B, Three dimensional model generated from whole body computed tomography of a female dog.

The frequency and the wavelength of sound waves are inversely related. The first variable determines the depth to which waves will penetrate; the second, the resolution that may be obtained (i.e., the detail that may be distinguished). Because waves of high frequency penetrate less deeply but record more detail, a compromise is involved in the selection of the appropriate crystal to deploy for a specific examination: several crystals are normally at hand, and each has its own inherent and invariable oscillation frequency. The maximum depth from which it is possible to obtain useful images is about 25 cm, thus limiting the application of ultrasonography in horses and cattle. In these large species its use is more or less restricted to the examination of the distal parts of the limbs and of the reproductive system (for which the transducer may be applied to the rectal mucosa). Ultrasonography is also widely used in the diagnosis of pregnancy in sows (although here a transabdominal approach is employed).

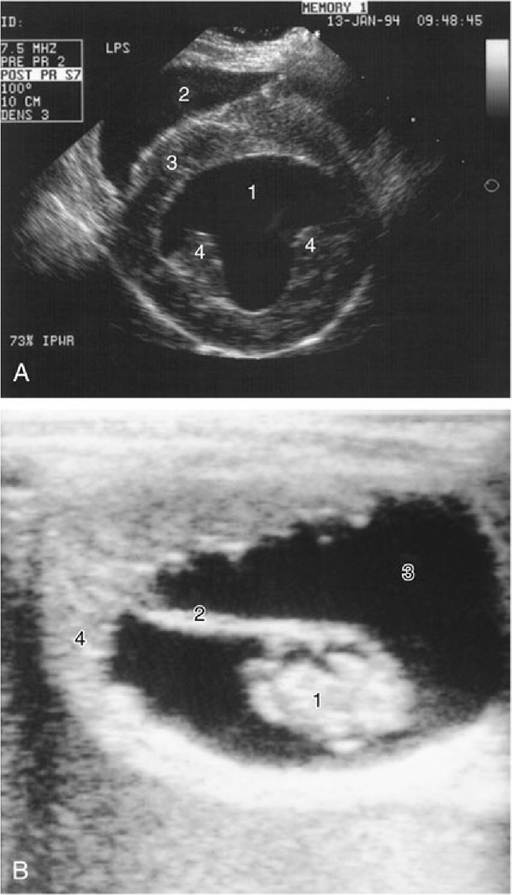

FIG. 1.5 (A) Ultrasonographic transverse (short-axis) view of the canine heart. 1, Left ventricle; 2, right ventricle; 3, septum; 4, papillary muscles. (B) Ultrasonographic view of a 42-day-old equine embryo. 1, Embryo, about 2 cm in length; 2, umbilical cord; 3, allantoic fluid; 4, uterine wall.

Water, blood, and most soft tissues offer very similar acoustic impedance, and interfaces between these substances are, at best, only moderately reflective; they are hypoechoic in Ultrasonographers' jargon. In contrast, the difference in impedance between soft tissue and bone, or between soft tissue and a gas-filled cavity, is very large, and the reflection of sound waves is almost total—the interface is hyperechoic. This feature makes it impossible to image tissues and organs that, like the brain within the skull, lie deep to bone; such parts are said to be within acoustic shadow. Conversely, a distended bladder, or other large volume of uniform impedance, may be used as a window through which deeper structures may be approached.

There are many differences in transducer design and usage. Some transducers contain multiple crystals arranged in line, which upon sequential activation create a rectangular image representing the thin slice of tissue situated deep to the transducer. More often a single crystal is employed but so arranged that the narrow beam that it generates swings repetitively in an arc, producing a wedge- or sector-shaped image (Fig. 1.5). In these B (or brightness) settings, the image represents a cross section through the field surveyed. In the alternative M (or motion) setting, the beam is emitted only at one fixed point in the crystal's oscillation, and the recording is therefore limited to the structures penetrated along a single axis. If the parts are moving, successive images reveal their changing shapes, and the changes are emphasized if successive images are recorded side by side. M-mode recordings are especially useful for demonstrating the movements of the walls of the heart chambers and valves.

Ultrasonograms are, in general, less easy for the novice to interpret than radiographs. Reverberations occur when the waves bounce back and forth, often because of defective coupling of the transducer to the skin, and may produce what appear to be multiple parallel interfaces within an organ. Small interfaces between the parenchyma and fibrous scaffolding of certain tissues produce diffuse scattering, or a stippled effect. Despite these (and other) drawbacks, ultrasonography possesses very considerable advantages, including absence of ionizing radiation.

Magnetic resonance imaging requires less extensive consideration because the expense of installation and operation of the equipment limits its current availability to only a few veterinary centers. The theoretical basis of MRI lies in changes in the structure of hydrogen atoms induced by strong magnetic fields and radio waves. Weak radio signals are subsequently produced when the subatomic structure returns to its normal configuration. These signals may be amplified, and their origins within the body may be precisely fixed in three dimensions. Because different tissues contain different concentrations of hydrogen atoms, their different responses can be used to distinguish them. Tissues such as fat that are rich in hydrogen produce bright images, in contrast to the black images of hydrogen-poor tissues such as bone (Fig. 1.6). Extremely high resolution is possible. There appear to be no health risks associated with the MRI scanner. Both CT and MRI are especially useful in the study of intracranial structures.
