THE STIFLE JOINT AND LEG

(See also pp. 91-93 and 97-99.)

The stifle joint is flexed in the standing posture. Although it is more fully extended in certain phases of locomo­tion, the femur and tibia are never brought into line, and the caudal angle of the joint does not open beyond 150° or so in dogs; considerably greater extension is permitted in the cat.

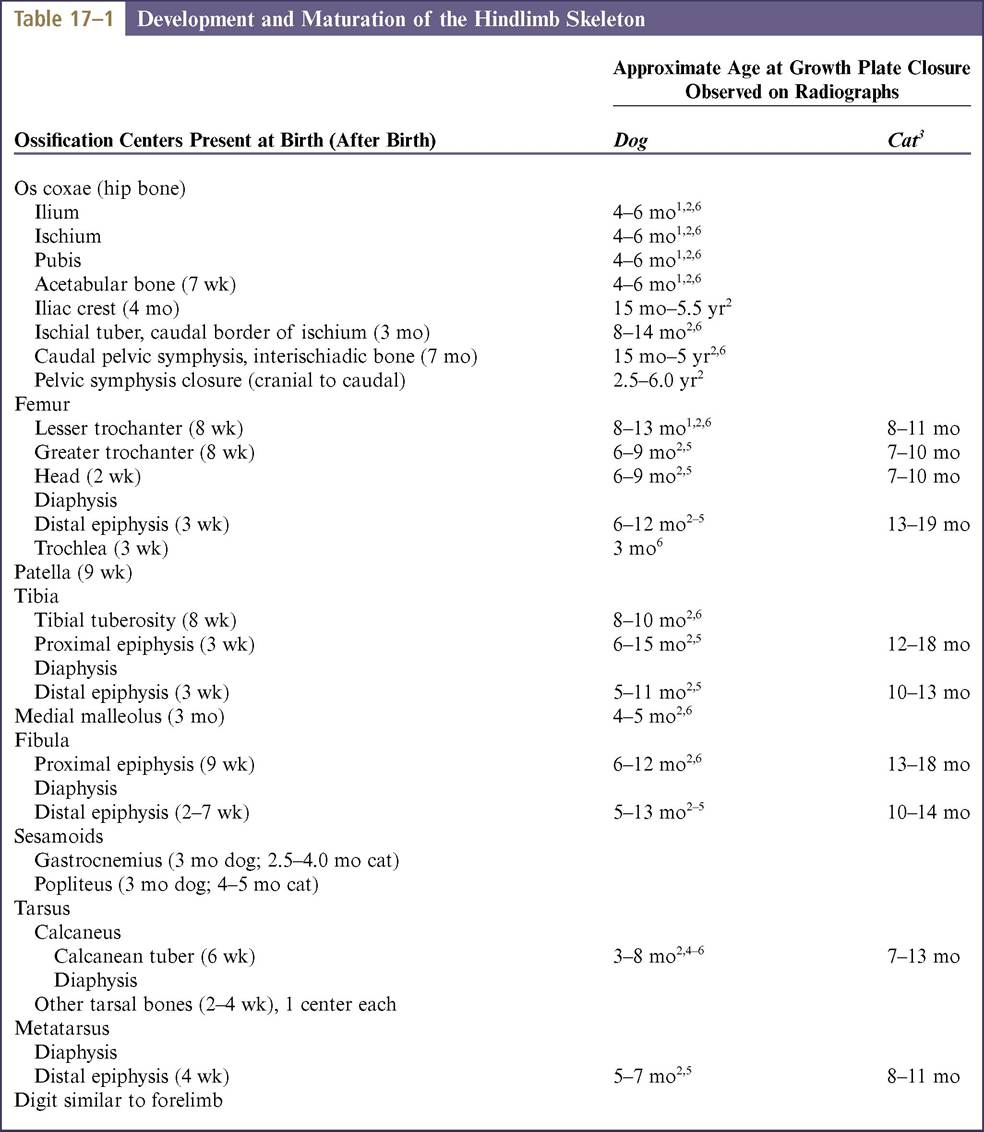

¹Based on Chapman WL: Appearance of ossification centers and epiphyseal closures as determined by radiographic techniques, J Am Vet Med Assoc 147:138-141, 1965.

²Based on Hare WCD: The age at which epiphyseal union takes place in the limb bones of the dog, Wien Tierarztl Monatsschr 9:224-245, 1972.

³Based on Smith RN: Fusion of ossification centers in the cat, J Small Anim Pract 10:523-530, 1969.

⁴Based on Smith RN, Allcock J: Epiphyseal fusion in the Greyhound, Vet Rec 72:75-79, 1960.

⁵Based on Sumner-Smith G: Observations on the epiphyseal fusion of the canine appendicular skeleton, J Small Anim Pract 7:303-311, 1966.

⁶Based on Ticer JW: Radiographic Technique in Small Animal Practice, Philadelphia, 1975, Saunders, p 101.

From de Lahunta A, Habel RE: Applied Veterinary Anatomy, Philadelphia, 1986, Saunders.

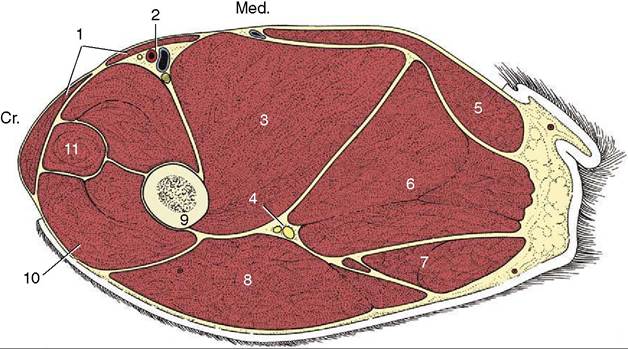

Figure 17-2 Transverse section of the canine left thigh.

the tibia by translation of the tibial tuberosity. The same procedure can be used to correct any medial or lateral patellar luxation, whatever its origin.

Palpation of the stifle joint reveals the following fea­tures of the skeleton: the patella; the ridges of the troch­lea and the outer surfaces of the condyles of the femur; the sesamoid bones within the origin of the gastrocne­mius; the head of the fibula; the edge of the lateral condyle adjacent to the fibula; the tuberosity; the exten­sor groove; and the medial surface of the tibia. The single patellar ligament and the medial and lateral col­lateral ligaments may also be distinguished; however, the femoropatellar ligaments cannot be distinguished because they are overlain by the aponeuroses of the sartorius and semimembranosus on the medial side and by that of the biceps laterally.

The most distinctive internal feature of the joint is the free communication of the various synovial com­partments, which ensures that a single injection will reach all parts of the cavity. The most convenient entry is from the lateral side, caudal to the thick pad of fat interposed between the patellar ligament (and adjoining retinaculum) and the synovial membrane. The cruciate ligaments are set well back (see Figure 2-63/15,16). They assist the collateral ligaments in opposing rotation and medial or lateral deviation of the leg and are most susceptible to injury when tautened. The cranial cruci­ate ligament, named for the relative position of its tibial attachment (Figure 2-63/16), is therefore at greatest risk when strained in overextension of the joint; its rupture allows abnormally free forward displacement of the tibia in relation to the femur (the “cranial drawer” sign). A short cranial drawer movement (1 to 3 mm) brought to an abrupt stop is normal in young dogs.

The caudal cruciate ligament is at greatest risk in the flexed position of the joint, and its rupture allows exces­sive caudal displacement of the tibia (the “caudal drawer” sign). Various surgical techniques for the resto­ration or replacement of these ligaments use fascial or artificial substitutes. The lateral collateral ligament can be used as a substitute for the cranial cruciate ligament after transposition of the head of the fibula cranially.

The lateral femorotibial joint has two pouches: one is under the tendon of the long digital extensor muscle at its origin from the extensor fossa, and the other invests the tendon of origin of the popliteal muscle, which contains a sesamoid bone close to the lateral tibial condyle.

The menisci, joined cranially by an intermeniscal ligament (also caudally, in the cat), provide additional restraints and are also prone to injury. They are most vulnerable when torsion is imposed on a limb in which the stifle is extended and the foot fixed—a combination of circumstances found when an abrupt change in direc­tion is attempted by a dog traveling at speed. Most often a meniscal tear is found in combination with a rupture of the cranial cruciate ligament. The meniscal horns are more richly supplied with blood vessels and nerves in comparison with the more central parts. The involved portion, or sometimes the whole meniscus, is often removed after injury; an imperfect replacement may ultimately be formed from granulation tissue produced by the capsule at the site of the original attachment. The medial meniscus has an additional restraint imposed by a connection with the medial femorotibial ligament by

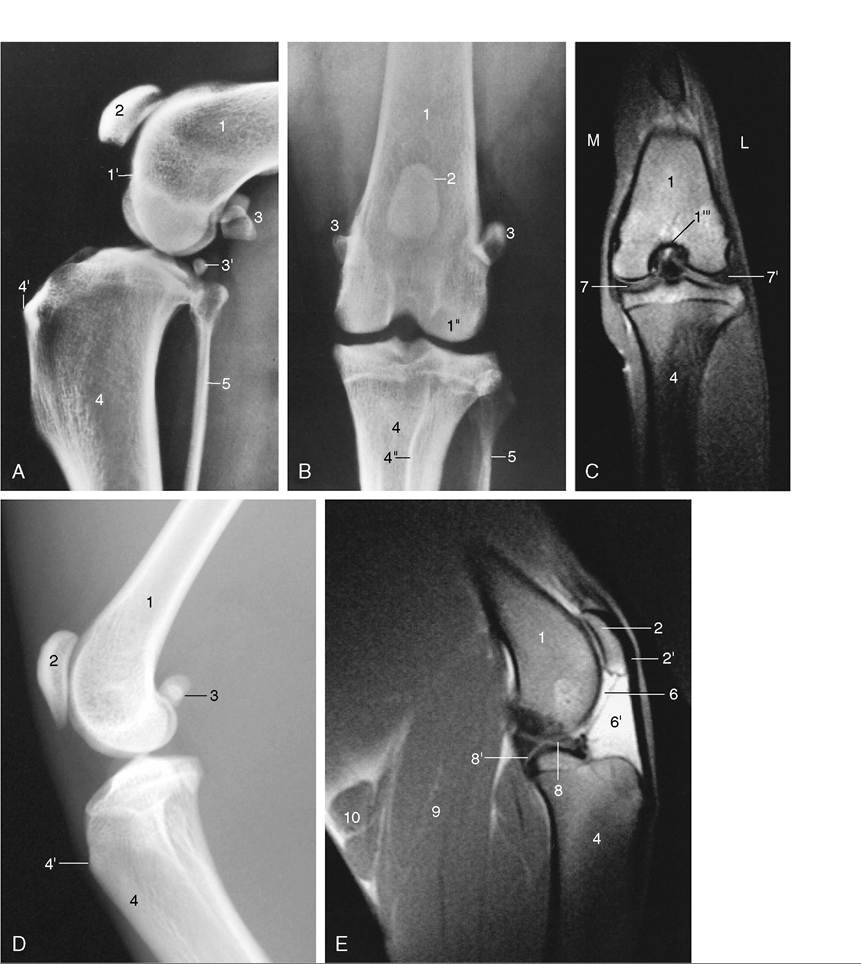

Figure 17-3 Lateral (A) and craniocaudal (B) radiographic views of the canine and feline (D, lateral only) stifles.

way of the joint capsule; this may limit the range of its excursions when these are compared with those of its fellow and may thus be a factor in determining the incidence of injuries.

Both lateral and craniocaudal radiographic projec­tions are commonly used in the diagnosis of stifle inju­ries (Figure 17-3). In the latter view the patella is superimposed on the distal end of the femur, where it is flanked by the ridges of the trochlea, which appear as thin radiodense lines. The tibial condyles are relatively flat because they are not separated by the conspicuous intercondyloid tubercles found in the larger species. The head of the fibula falls short of the extremity of the tibia. In the lateral view the femoral and tibial condyles are seen to have only limited, rather caudal contact and the joint appears unstable because the menisci that

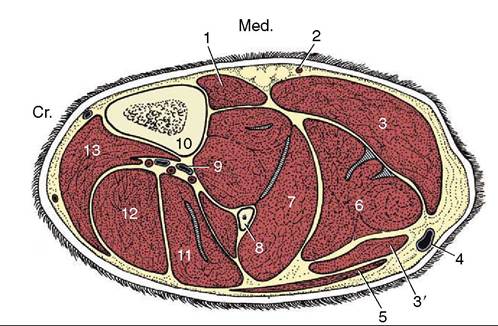

Figure 17-4 Transverse section of the canine left leg. 1, Popliteus; 2, saphenous artery; 3,3', medial and lateral heads of the gastrocnemius; 4, lateral saphenous vein; 5, biceps femoris; 6, superficial digital flexor; 7, deep digital flexor; 8, fibula; 9, cranial tibial vessels; 10, tibia; 11, peroneus longus; 12, long digital extensor; 13, tibialis cranialis.

maintain its congruence are not revealed. The patellar ligament, the most prominent soft tissue shadow, runs at some distance from the femur, and the space behind it is occupied by the infrapatellar fat cushion.

In dogs, both the distal femoral and proximal tibial epiphyses generally fuse with their respective shafts between the 6th and 12th months. The center for the tibial tuberosity fuses between the 8th and 10th months; while it persists, the cartilage line between it and the shaft is rather wide and irregular, presenting an appear­ance that simulates avulsion of the tuberosity. The onset and completion of these fusions are somewhat delayed in cats.

Few features of the leg require further comment. The subcutaneous surface of the tibia divides the cranial and caudal crural muscles medially, while the fibula makes the same division laterally (Figure 17-4). In lean dogs the fibula may be palpated along its length, but in fatter and particularly well-muscled animals only the

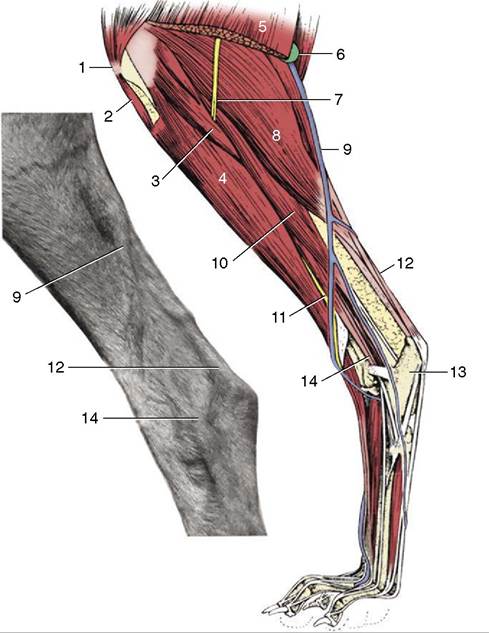

Figure 17-5 Left canine hindlimb; the inset shows the actual appearance of the lateral saphenous vein (9); lateral view. 1, Patella; 2, patellar ligament; 3, peroneus longus; 4, tibialis cranialis; 5, biceps femoris; 6, popliteal lymph node; 7, common peroneal nerve; 8, lateral head of gastrocnemius; 9, lateral saphenous vein; 10, deep digital flexor; 11, superficial peroneal nerve; 12, calcanean tendon; 13, calcaneus; 14, peroneus longus tendon.

head and the distal half of the shaft may be felt with certainty. The superficial flexor and gastrocnemius com­ponents of the common calcaneal tendon may be iden­tified separately, distal to the belly of the latter. The lateral saphenous vein is a very conspicuous surface feature of the lateral aspect (Figure 17-5/9). It runs proximocaudally over the lower part of the leg before following the gastrocnemius on the caudal border to join the femoral vein within the popliteal fossa. The vein is much used for intravenous injections; its proximal part is better suited to this use because it is both rela­tively fixed and straight; the more mobile distal part undulates, dipping between the caudal crural muscles and the common calcanean tendon.

The vascularization of the leg and more distal parts depends on the cranial tibial and saphenous arteries because the caudal tibial is quite insignificant (Figure

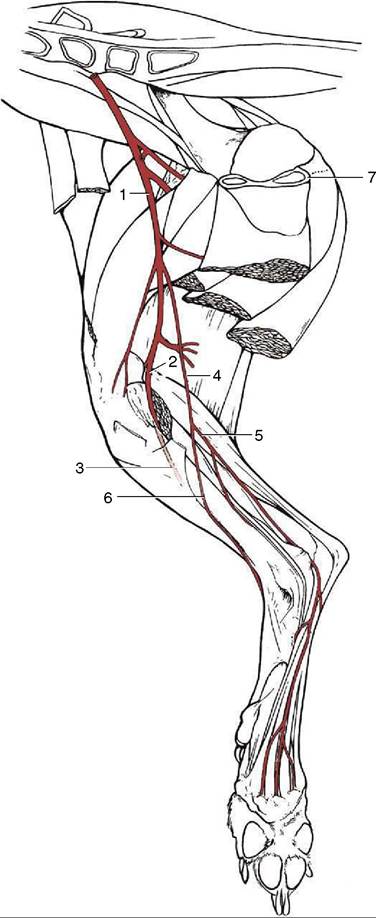

Figure 17-6 The principal arteries of the canine right hindlimb, medial view. 1, Femoral a.; 2, popliteal a.; 3, cranial tibial a. passing between tibia and fibula; 4, saphenous a.; 5, 6, caudal and cranial branches of saphenous a.; 7, pelvic floor.

17-6/3,4). The cranial tibial continues the popliteal artery, which runs deep to the popliteal muscle on the caudal aspect of the stifle. The artery then passes between the tibia and fibula in the proximal part of the leg before penetrating the dorsal muscles. It reappears toward the hock and then follows the long extensor tendon across the joint into the paw. The saphenous artery, which broadly serves the territory assigned to the caudal tibial in many species, crosses the medial aspect of the stifle before dividing into cranial and caudal branches. The cranial branch (Figure 17-6/6) remains superficial and continues into the paw, where it supple­ments the cranial tibial in supplying dorsal structures; the caudal branch (Figure 17-6/5) accompanies the tibial nerve and, after supplying caudal crural muscles, follows the flexor tendons into the plantar aspect of the paw.
